GTS07 Heat Spreader is a thermal conductive sheet with high thermal conductivity andhigh flexibility. GTS Heat Spreader Advanced Composite Materials thermalinterface pad is made from carbon fiber, carbon nano-powder and Heat Spreadersynthesized by a special process with complex structure of nano-compositematerials. It is ideal for providing thermalmanagement/heat-sinking in limited spaces or to provide supplementalheat-sinking in addition to conventional means. GTS Heat Spreader is flexibleand can be cut into customizable shapes, GTS Heat Spreader RoHS compliant
GTS Heat Spreader solutions
l Engineered in-plane thermal conductivity 500W/m-K
l EMI shielding and absorbing to protectsensitive electronic parts
l Reliable performance from -40 ℃to 400 ℃
l RoHS compliant and UL94V0 flammability rated
l Offered in thickness 0.07mm

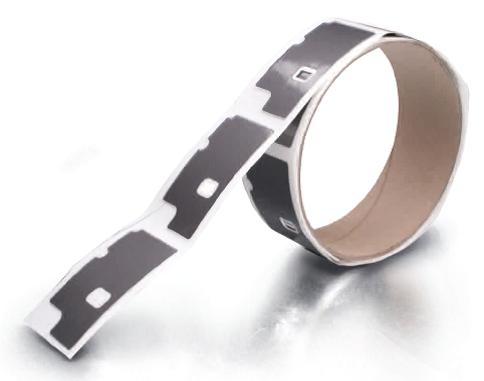

l Can be die-cut into customizable shapes
l Can be adhesive-backed for peel-and-stickattachment
l Can be laminated with plastics, metals orfoam to improve performance
l Reduce skin temperature and eliminate “hotspots”
l Can replace grease or PCM, eliminate fans andheat pipes
GTSSeries Typical Propertiest
PROPERTY | GTS-07 | Test Method |
Color | Dark gray | Visual |
Thickness, mm | 0.07 | ASTM D374 |
Continuous Use Temp, °C | -40 ~ 400 | - |
ELECTRICAl |
|
|
Typical Electrical Resistivity (Through Thickness) | >16000 μΩm | ASTM C611 |
Typical Electrical Resistivity ( In-Plane) | 10 μΩm | ASTM C611 |
Flammability Level | 94V-0 | UL94 |
THERMAL |
|
|
Typical1 Thermal Conductivity (In-Plane) ,W/m-K | 500 | Angstom’s Method |
Typical1Thermal Conductivity (Through Thickness), W/m-K | 15 | ASTM D5470 |
Note:
1 Properties listed are typical and cannot be used as accept/rejectspecifications.
2 Dielectric coatings can be applied to GTS materials to increaseThru-thickness Electical Resistivity
APPLICATION
GTS-07 has the characteristics of high heatconductivity 500W/m-K. GTS is very thin which allows for easy attachment to avariety of heat sink or component surfaces. Apply to heat sink, position thepad and press in place onto the heat sink. The GTS is in flexibility, wide-rangetemperature.
Typical applications
GTS-07 Heat Spreader can be used in manymarkets, all of which improve thermal conductive performance within a limitedspace.
------Displays, lighting and projection;
PDP TV, LCD CCFL andLCD LED display backlight, LED lighting and signage, projectors and new displaytechnologies.
------Comsumer and industrial electronics；
Mobile telephone，CommunicationBase Station, Laptop and Notebook，Computer servers，Handheld gaming devices，Memory modules , CPU modules，Amplifiers, batteries and DC toDC converters power supplies.
------Automotive Electronics；
Enginemanagement，electronic suspension，braking systems，communication and multimedia systems，comfort convenience features and vehicle lighting and controls，Hybrid vehicles and electric vehicle battery thermal management.
Building a Part Number
Example: GTS-07 – P10 G A10
; ; 1 2 3
1-----GTS-07 series Number
2-----P10 ：PET 10um , PET Standard Thicknesses Available 10um, 30um，50um.
3-----A10 ：Adhesive 10um ，Standard Thicknesses Available：10um，30um.
GTS-07-P10GA10 total thickness ：PET tape 10um+GTS70um+Adhesive 10um is 90um.
