Features and Benefits

Thermal condutivity:

X-Y direction 1000-1950W/mk

Z direction15W/mk

light Weight

Compressibility: 40% (600Kpa)

RoHS and REACH Compliant

High and long term reliability:operating temperature range   -55 to 400C°

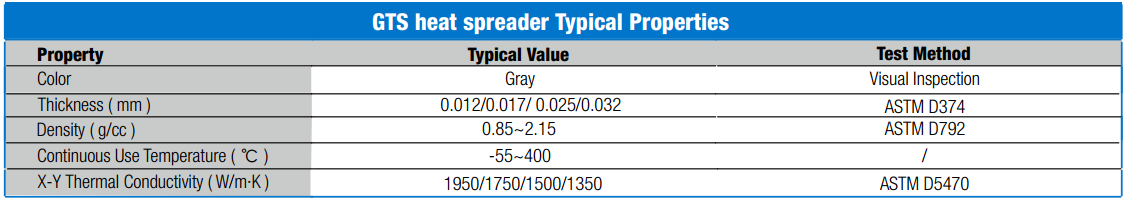

Specification

Artificial graphite heater spreader sheet has very highcompressibilitycompared to standard GTS, which enables reducing thethermal resistance byfollowing gap,warpage and distortion oftargetssubstrates. Excellent heatresistance and reliability of the GTS helpobtaining longer service life andhigher performance of various components,such as power modules. Itpossesses unique functions such as requiring lowcontact resistance and highthermalconductivity.   It can also function as aheat spreader for applicationseliminating hot spots, shielding components andreducing skin temperature ofelectronic devices. It is an ideal heat spreader

for thermal management in limited space.

Typical Applications

•Communication Equipment

•motor control unit

•Base station, Server

•luminous source of laser HUD

•Storage Device

Packaging Related

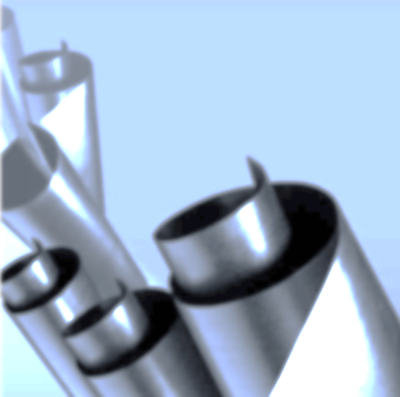

•GTS010/GTS17/GTS025/GTS030 Roll Form•Packing Specification

Size: Length * Width

150mm * 200000mm

Storage

•Shelf Life: 12 months

•Storage Conditions:

Temperature: 8℃< T < 28℃

Relative Humidity: RH < 70%
