Features and Benefits

•Good thermal conductivity, low thermal impedance

•Good thixotropy, operating easily

•Low sedimentation, good chemical and mechanical stability•Good crumpling resistance, high reliability in long-term work•Suitable for silk-screen printing process

Specification

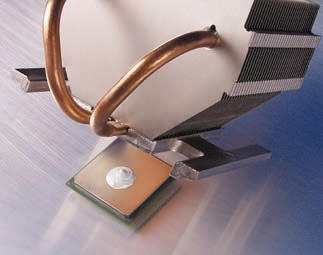

TGC 1000 is a thermally conductive grease compound designedfor use

as a thermal interface material between a high-power electroniccomponent and a heat sink.

TGC 1000 compound wets-out the thermal interfaces and flowstoproduce very low thermal impedance. The compound is able to cool theelectronic components quickly and efficiently, in order to extend their shelflife and improve reliability.

TGC 1000 is highly stabile from -45℃to 150℃, and has goodweatherability as well as dielectric properties, in addition to the good thermalconductivity, which will not produce the pressure when use. The compoundmeets the requirements of electronics industries as a thermally conductiveinterface material.

Typical Applications

•Communication Equipment

•Network Terminal

•Storage Device

•LED

•Consumer Electronics

•Power Components
