Features and Benefits

•Good thermal conductivity, low thermal impedance

•High dielectric breakdown voltage

•Smooth, good surface compliance

•Low mounting pressure

•UL94-V0 Flame Rating

•RoHS, Halogen-Free

Specification

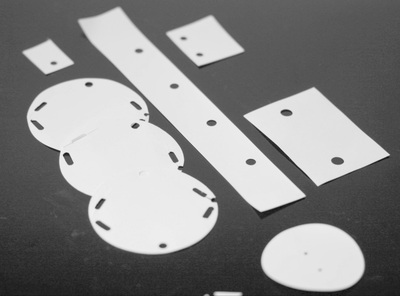

TIS3500 is a thermally conductive insulator made from thermallyconductive silicone rubber with fiberglass as reinforcement carrier, whichhas good thermal conductivity and high dielectric strength. TIS3500ismainly used between a power semiconductor component and heat sink,where requires high thermal conductivity and insulating property.TIS3500issoftandsmooth,alsohasquitegoodsurfacecompliance uponkinds of metal and ceramic components. TIS3500is ableto achieve lowinterfacial thermal resistance and high-efficiency heatdissipation ofpower components under lower pressures with its goodthermalconductivity.

Typical Applications

•Power Supply

•LED

•Automotive Electronics

•Communication Equipment

•Network Terminal

•Storage Device

•Consumer Electronics

•Security Equipment

TIS3500 replaced Bergquist SP2000
