Features and Benefits

•Good thermal conductivity, low thermal impedance

•High dielectric breakdown voltage

•Smooth, good surface compliance

•Low mounting pressure

•UL94-V0 Flame Rating

•RoHS, Halogen-Free

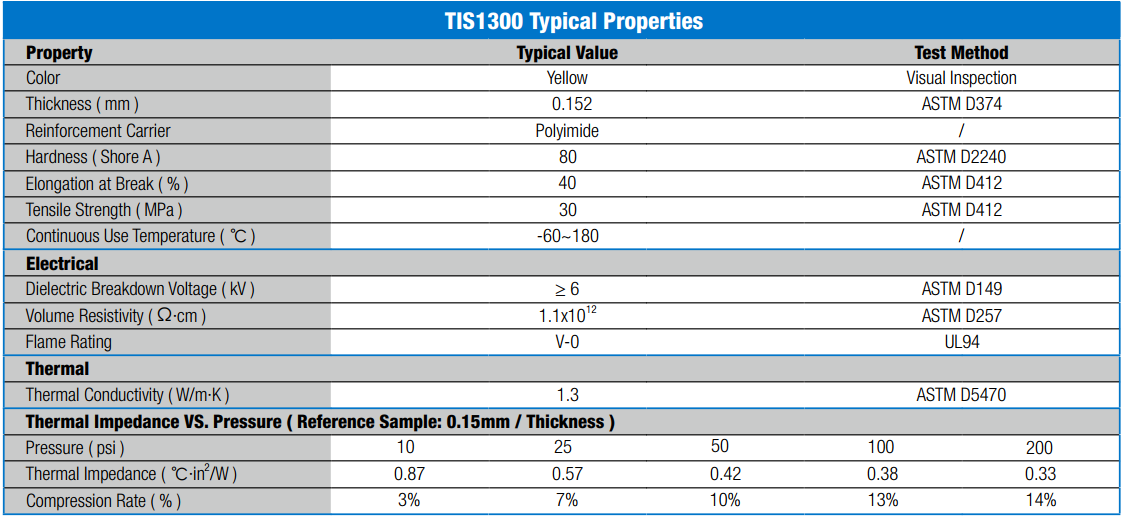

Specification

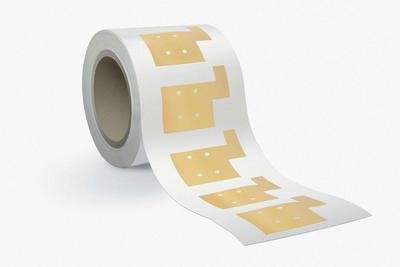

TIS1300 is a thermally conductive insulator made from thermallyconductive silicone rubber with polyimide as reinforcement carrier, whichhas good thermal conductivity and high dielectric strength. TIS1300 ismainly used between a power semiconductor component and its heatsink, where requires high thermal conductivity and insulating property.TIS1300issoftandsmooth,alsohasquitegoodsurfacecompliance upon kinds of metal and ceramic components. TIS1300 is ableto achieve low interfacial thermal resistance and high-efficiencyheatdissipation of power components under lower pressures with its high

thermal conductivity.

Typical Applications

•Power Supply

•LED

•Automotive Electronics

•Communication Equipment

•Network Terminal

•Storage Device

•Consumer Electronics

•Security Equipment

TIS1300K replaced Bergquist SPK10
