Features and Benefits

•Thermal resistance : 0.2K.cm2/W(600 KPa)

•Thermal condutivity:

X-Y direction 400-700W/mk

Z direction 20-28W/mk

•light Weight

•Compressibility: 40% (600Kpa)

•High and long term reliability:

operating temperature range   -55 to 400 C°

Specification

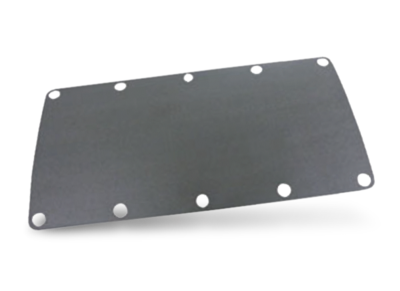

synthetic graphite Soft Thermally conductive sheet has very highcompressibility compared to standard GTS, which enables reducing thethermal resistance by following gap,warpage and distortion oftargetssubstrates. Excellent heat resistance and reliability of the soft GTS helpobtaining longer service life and higher performance of various components,such as power modules. It possesses unique functions such as requiring lowcontact resistance and high thermalconductivity.   It can also function as aheatspreader for applications eliminating hot spots, shielding components andreducing skin temperature of electronic devices. It is an ideal heat spreaderfor thermal management in limited space.

Typical Applications

•Communication Equipment

•motor control unit

•Base station, Server

•luminous source of laser HUD

•Storage Device
